The work, in detail / New Zealand

Every drawing
tells a working story.

Explore selected estimating work across New Zealand. Real marked-up plans, visible scope and the detail behind a useful handover.

Explore the project library ↓

SELECTED WORK / SJEH Ground-floor ceiling zones from an actual New Zealand estimating sample

From the drawing
to the decision.05 sample sets
Residential · Commercial · Education

New Zealand

Commercial tower strengthening

The sample uses different colours to separate column sizes and heights across floor levels. Existing structural information remains visible beneath the counting marks, allowing the schedule to be traced back to each drawing location.

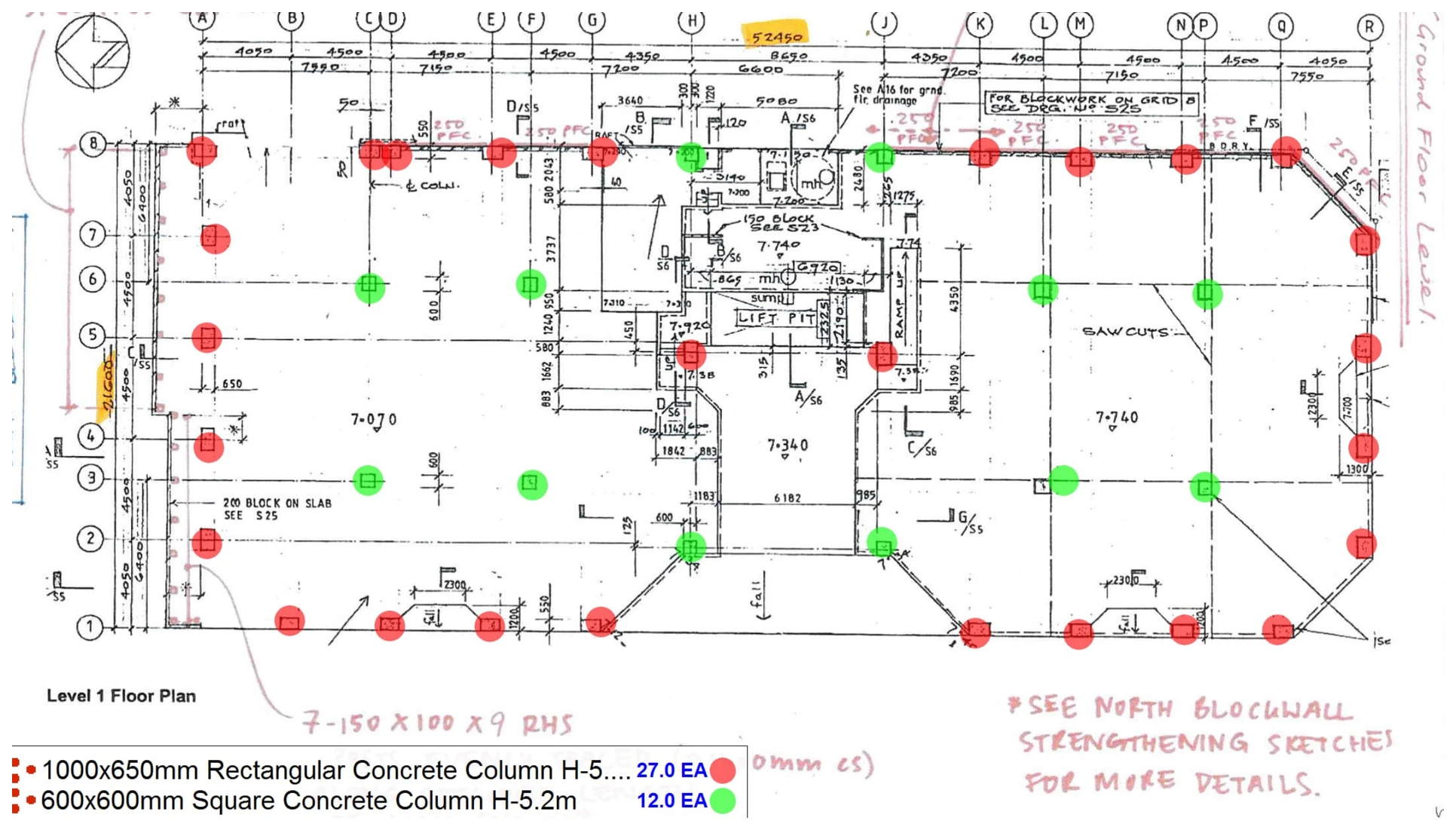

Ground-level column identification from an actual New Zealand estimating sample — Ground-level column identification

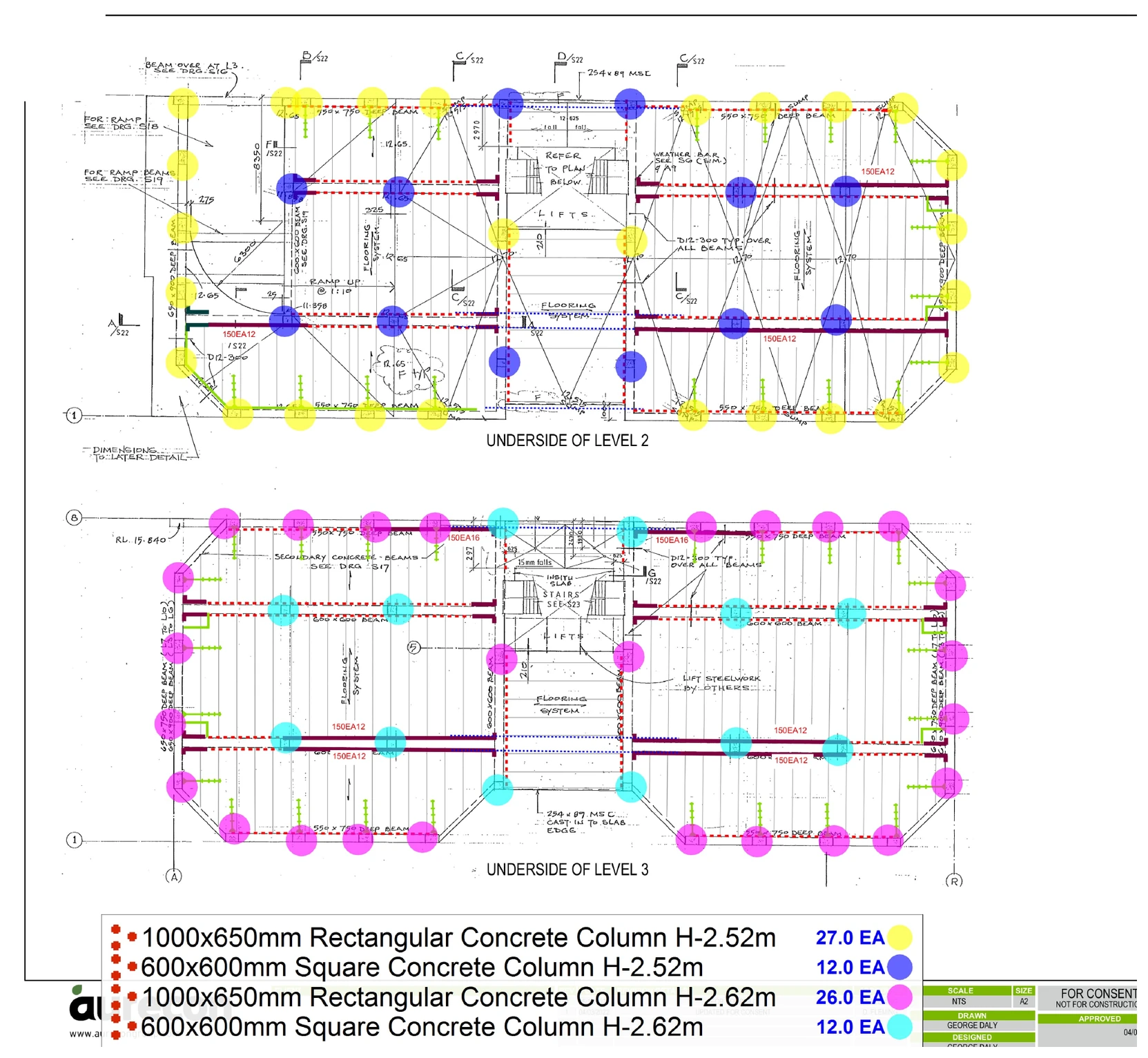

Levels 2 and 3 column counts from an actual New Zealand estimating sample — Levels 2 and 3 column counts

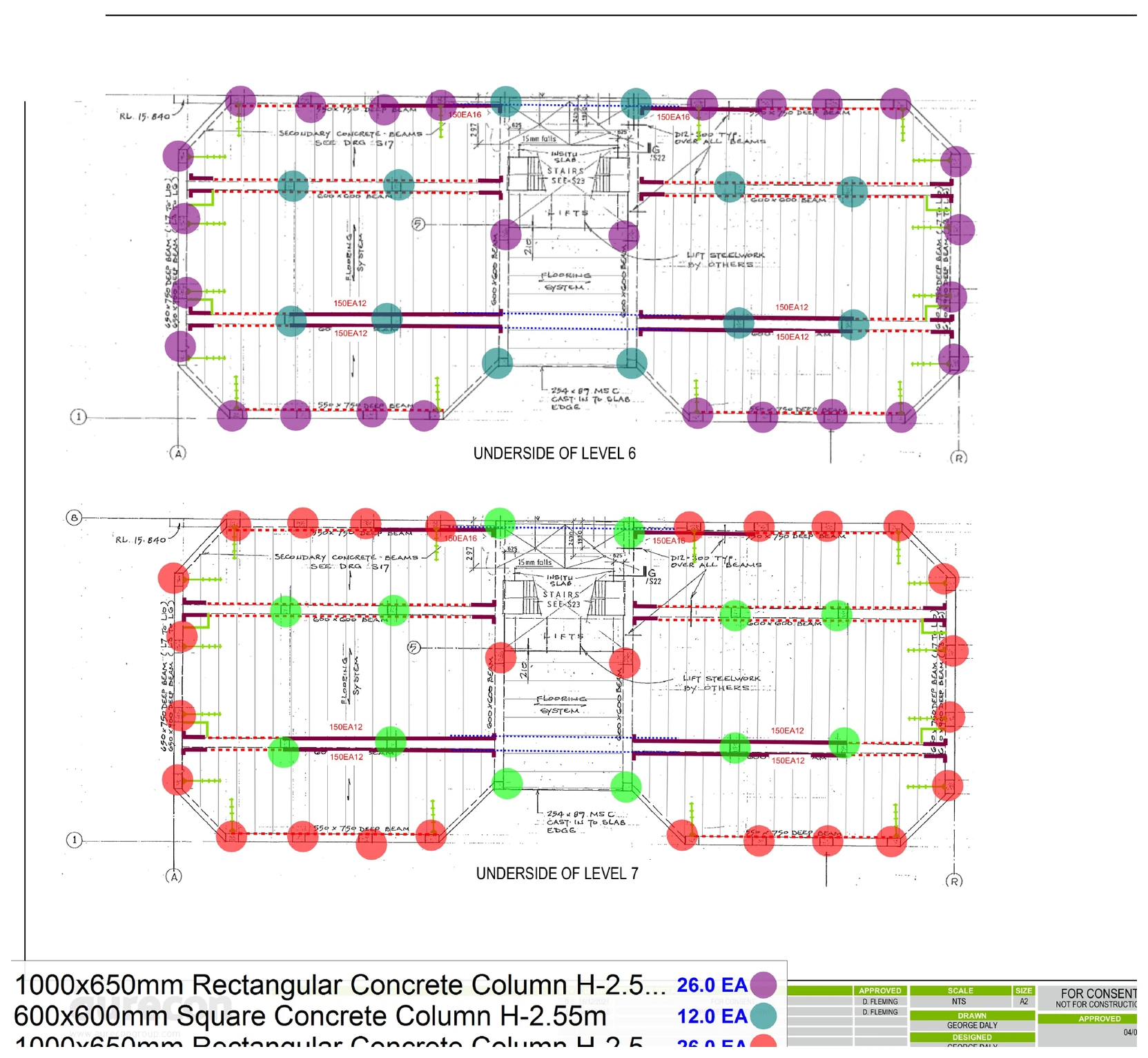

Upper-level structural comparison from an actual New Zealand estimating sample — Upper-level structural comparison

Underlying structural drawings: Aurecon. Estimating markups supplied by SJ Estimating House.

A closer look at the scope

Find the detail
that matters to your build.

Choose a project type or search by location and scope. Open any sample to explore its drawings and estimating coverage.

5 project samples

Residential / Auckland

Multi-home insulation takeoff

Colour-coded insulation scope across ground and first-floor plans for a multi-home development.

3 selected drawing views

Retaining wall and pile foundations from an actual New Zealand estimating sample

Residential / Wellington

Residential foundations and structure

Retaining wall footings, piles, slab zones and masonry quantities coordinated with a trade summary.

3 selected drawing views

Commercial / New Zealand

Commercial tower strengthening

Level-by-level concrete column counts and structural strengthening markups for an existing tower.

3 selected drawing views

Riser section and component legend from an actual New Zealand estimating sample

Education / Wellington

Campus facade and riser details

Detailed facade component measurement for a university building exterior and services riser.

2 selected drawing views

Lower-level wall insulation from an actual New Zealand estimating sample

Residential / Auckland

New-home thermal envelope

Floor-by-floor wall and ceiling insulation markups for a detailed new-home plan set.

3 selected drawing views

A note on these samples

These are selected estimating work samples supplied by SJEH. Preview drawings are cropped to omit personal contact details, full residential addresses and pricing. They show measured scope, not evidence of completed construction or guaranteed project outcomes. Underlying drawing credits appear with each project.

Your project could start here

A different project.
The same attention to detail.

Share your drawing set, required packages and tender date. We will agree the estimating scope with you.

Discuss your drawing set ↗
